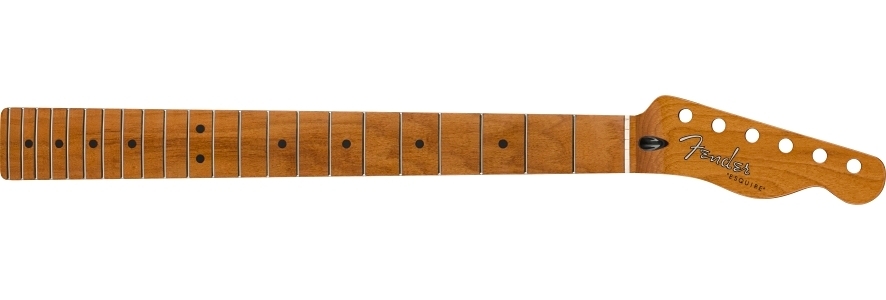

There's no denying the allure of a roasted maple neck. Resistant to humidity shifts and featuring a gorgeous, dark look, they have more sustain and add a unique note to the instrument's voice. This roasted maple Modified Esquire neck has the back shape of an early 50's Esquire but with a flatter fingerboard radius and larger frets for modern playability.

Fender replacement necks are made at Fender manufacturing facilities to the same specifications as those used on our instruments. This Ensenada, Mexico-made Esquire neck features a maple fingerboard, a 9.5" radius and 22 narrow tall frets. The one-piece roasted maple neck has a thick early 50's "U" profile with a smooth satin urethane finish on the front and back of the neck. The headstock has a gloss finish with an authentic "Esquire" decal to complete the classic look.

The bone nut is pre-slotted with "pilot" string location grooves to make spacing a breeze when performing the final string slot filing. For true Fender authenticity, it's also serialized and stamped, with genuine headstock logo decal.

This replacement neck is for a Fender or Squier® by Fender guitar.

Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures. Your local FMIC Authorized Service Center can install genuine replacement necks; find Authorized Service Center locations near you in the "Support" section of fender.com.

  • Neck Shape
    Early '50s "U"
  • Tuner Mounting Config
    Dual Guide Pin
  • Fingerboard Material
    Roasted Maple
  • Neck Material
    Roasted Maple
  • Nut Material
    Bone
  • Position Inlays
    Black Dot
  • Neck Finish
    Satin Urethane with Gloss Urethane Headstock Face
  • Truss Rod Nut
    3/16" Hex Adjustment
  • Truss Rod
    Standard
  • Fingerboard Radius
    9.5" (241 mm)
  • Scale Length
    25.5" (64.77 cm)
  • Nut Width
    1.650" (42 mm)
  • Number of Frets
    22
  • Fret Size
    Narrow Tall
  • Headstock Thickness
    .540" (13.71 mm)
  • Neck Thickness
    1st Fret - .880” (22.35 mm), 12th Fret - .990” (25.15 mm)
  • Peg Hole Diameter
    .397" (10.08 mm)

Features

  • One-piece roasted maple neck with walnut "skunk" stripe
  • Roasted maple fingerboard with 9.5" radius
  • 22 narrow tall frets
  • Pre-slotted bone nut
  • Standard truss rod
  • Six two-guide-pin tuning machine holes

50's Modified Esquire Neck, 22 Narrow Tall Frets, 9.5", U Shape, Roasted Maple

Model #: 0990217920
$399.99
