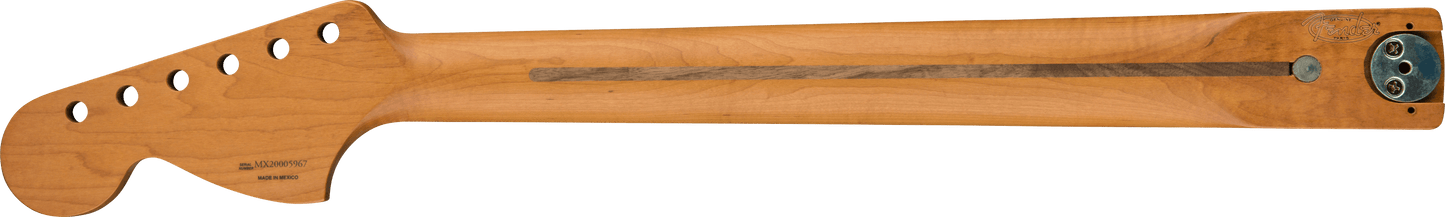

Roasted Maple Vintera® Mod '70's Stratocaster® Neck, 21 Medium Jumbo Frets, 9.5", "C" Shape

Model #: 0999742920
Roasted Maple Vintera® Mod '70's Stratocaster® Neck, 21 Medium Jumbo Frets, 9.5", "C" Shape view 1.0

Availability:
  • In Stock

$399.99
MORE ON THE WAY

Order now and we expect to ship within the next 30 days

There’s no denying the allure of a roasted maple neck. Resistant to humidity shifts and featuring a gorgeous, dark look, they have more sustain and add a unique note to the instrument’s voice.

This genuine Fender Stratocaster neck is crafted at our Ensenada, Mexico manufacturing facility. Featuring an “early 70’s C” neck profile and 9.5"-radius maple fingerboard with 21 medium jumbo frets, for modern playing feel. Although this neck features a 3-bolt design typical of '70s Strats, only the bottom two neck mounting pilot holes are available, giving you the flexibility to use this neck with many different guitar bodies. The synthetic bone nut is pre-slotted with "pilot" grooves for accurate spacing when filing the final string slots. The perfect way to give your Strat® authentic Fender feel, this replacement neck even sports the CBS era logo and a Bullet truss rod on the larger headstock.



Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures. Your local FMIC Authorized Service Center can install genuine replacement necks; find Authorized Service Center locations near you in the “Support” section of fender.com.

Features

  • Roasted maple neck
  • “Early 70’s C”-shaped profile; 9.5”-radius maple fingerboard
  • 21 medium jumbo frets; pre-slotted synthetic bone nut
  • Gloss urethane finish on fingerboard and headstock face; satin finish on back of neck
  • Bullet-style truss rod adjustment
General
  • Style
    Modern
  • Neck Shape
    Early '70's "C"
  • Tuner Mounting Config
    70's 2-screw
Materials
  • Fingerboard Material
    Roasted Maple
  • Neck Material
    Roasted Maple
  • Nut Material
    Synthetic Bone
  • Position Inlays
    Black Dot
  • Neck Finish
    Gloss urethane finish on fingerboard and headstock face; satin finish on back of neck
  • Truss Rod Nut
    Bullet Style
  • Truss Rod
    Bullet Style
Measurements
  • Fingerboard Radius
    9.5" (241 mm)
  • Scale Length
    25.5" (648 mm)
  • Nut Width
    1.650" (42 mm)
  • Number of Frets
    21
  • Fret Size
    Medium Jumbo
  • Headstock Thickness
    .540” (13.71 mm)
  • Neck Thickness
    1st Fret - .850" (21.59 mm), 12th Fret - .910" (23.11 mm)
  • Peg Hole Diameter
    .397" (10.08 mm)
