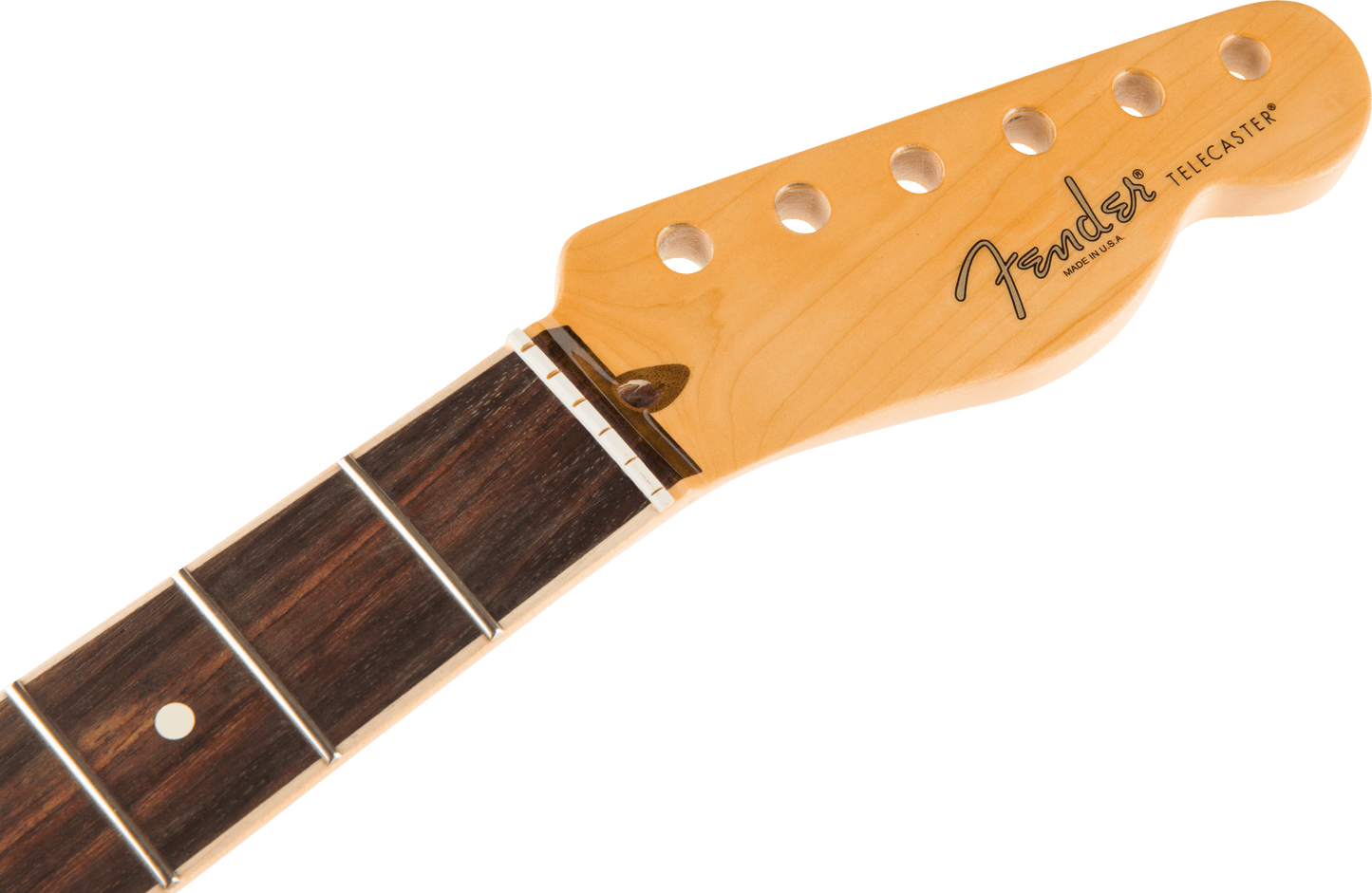

American Channel Bound Telecaster® Neck, 21 Med Jumbo Frets - Rosewood
Add A Touch Of Elegance
Crafted in the same facility as our U.S.-made instruments, the Channel-Bound Telecaster® Neck combines a uniquely elegant aesthetic with a distinctively smooth fret-hand feel. The "channel-bound" fingerboard is a unique Fender innovation whereby the fingerboard is directly inlaid into the neck, eliminating the side seams while combining slick style with astounding fret-hand feel. The 9.5"-14" compound-radius rosewood fingerboard is more rounded towards the nut for easy chording, while the flatter radius in the upper register allows wide bends without fretting out. The comfortably rounded fingerboard edges and "Modern C"-shaped profile are ideal for any playing style.
This replacement neck is for a Fender or Squier® by Fender guitar.
Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures. Your local FMIC Authorized Service Center can install genuine replacement necks; find Authorized Service Center locations near you in the “Support” section of fender.com.
- Maple Telecaster neck w/ walnut stripe
- Channel-bound 9.5”-14” compound-radius fingerboard
- 21 medium jumbo frets; vintage ivory inlays
- Hand-rubbed polyurethane finish with gloss headstock
- Pre-slotted synthetic bone nut; Bi-Flex™ truss rod
- Six two-guide-pin tuning machine holes; requires 4-bolt neck plate
Neck ShapeModern "C"
Tuner Mounting ConfigDual Guide Pin
Nut MaterialSynthetic Bone
Position InlaysVintage Ivory Dots
Neck FinishSatin Urethane Finish on Back of Neck with Gloss Urethane Headstock Face
Truss Rod Nut1/8" Hex Adjustment
Fingerboard Radius9.5" to 14" Compound Radius (241 mm-355.6 mm)
Scale Length25.5" (64.77 cm)
Nut Width1.6875" (42.86 mm)
Number of Frets21
Fret SizeMedium Jumbo
Headstock Thickness.540" (13.71 mm)
Neck Thickness1st Fret - .820" (20.82 mm), 12th Fret - .870" (22.09 mm)
Peg Hole Diameter.404” (10.26 mm)
